Palm-sized, full featured controller with onboard Wi-Fi, polyphony and digital motor control.
Advanced media enabled show playback devices.
ProCommander® X-Series
Advanced lighting, media & motion
ProCommander® X Series provides advanced networking, polyphony, digital motor control and more, utilizing familiar Weigl timeline software and our continually evolving WEM | Script™ language. Mix and match your favorite Pro I/O™ and WEMLink™ modules, integrate external lighting or media interfaces and build your show in Showforge® or Conductor in real-time. Our most powerful controllers yet, these ProCommanders provide what’s needed to accommodate today’s most interactive project spaces.
- ProCommander® AX - Portable & Full Featured
- ProCommander® HX - Advanced Audio Features
- ProCommander® VX - 4k or Dual 1080p Video
The ProCommander® AX is small enough to fit in the palm of your hand, but powerful enough to control a complete exhibit. Designed around portable motion control, this stereo unit with polyphony, dual network jacks and 2.4/5 ghz Wi-Fi is unique in its class.
Features:
- 1 DMX universe input/output via IX Connector
- 16 Universes of sACN/ArtNet (DMX) via network
- 2.4 GHZ & 5 GHZ Wi-Fi
- 8 Inputs (Analog or Digital)
- 4 Analog outputs (0-10vdc)
- 4 Digital outputs
- 16 digital motor control outputs (CANOpen or RS-485)
- High powered on-board Class-D stereo amp
- Dual ethernet onboard
- Mounts in 1/4 rack space or DIN rail
- Integrated MicroSD storage for audio/timeline data
- High power MOSFET transistors
- Locking CANOpen connection for digital motor control
- Full-Duplex RS-485
- Uncompressed .WAV audio
- High contrast graphic OLED display
- 12-24vdc
- Aluminum (external WiFi) or integrated WiFi composite housing
- OEM, rack or DIN rail mounting and enclosure options possible
- MTC, ArtNet, FSK and SMPTE LTC timecode inputs
- PTP Sync
Technical Highlights:
- Network jack for UDP control messaging, configuration, firmware updates and show file uploads
- Play up to 18 timelines (4 audio playback streams concurrently) to allow management of a variety of tasks around your exhibit
- Powerful Class-D amplifier provides in-place amplification throughout the exhibit space
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
- Built in CANOpen direct motor control

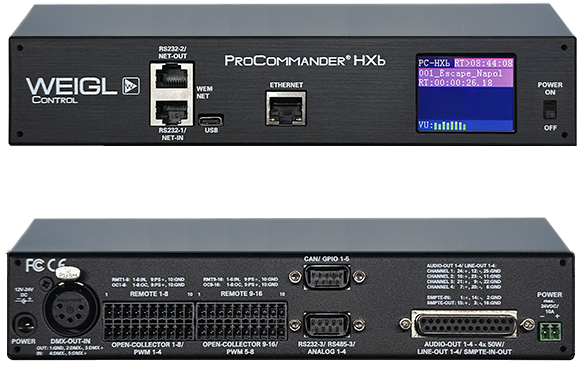

The ProCommander® HX is the most advanced media driven animation controller we’ve ever built. Engineered using the highest level of quality standards, this controller supports a wide variety of industry standard motion control protocols, combined with 8 fully polyphonic, uncompressed audio outputs and 75W class-D amplifiers.
FEATURES:
- 16 digital outputs, configurable for PNP or NPN switching
- 8 fully polyphonic audio playback channels
- SMPTE/ FSK in/out
- Full color touchscreen for setup and show operation control
- 16 inputs, multiple configurations
- 3 RS-232 serial ports (1 RS-485 capable w/Full Duplex)
- 1 universe of local DMX in/out
- Up to 16 universes of sACN/Art-Net output via network
- 4 Analog outputs
- 4 GPIO software configurable expansion option
- On-board dual Ethernet
- High power MOSFET transistors
- Mounts in 1/2 rack space
- High powered 75w, 8-Channel on-board class-D amp
- Dual mic input and line input with dynamic paging/ducking abilities
- 2 effects channels (non-polyphony) for additional audio capability
- Integrated DMX merger with LTP, HTP modes
- Integrated SD/SLC storage for audio/timeline data
- CANOpen for direct digital motor control
- Optical audio output
- Balanced audio output (via DB-25 Tascam harness, XLR, 1/4″ or terminal strips & more available)
- AES67 network audio
- PTP Sync
- Art-Net/MTC timecode sync
Technical Highlights:
- DMX merging, input and systems integration – eliminate additional hardware
- Dual network jacks for UDP messaging and show file uploads
- Full polyphony and audio routing for dynamic synced audio spaces
- User configurable serial ports (3) allow for both input and output integrations with legacy and industrial show devices
- Powerful 75W Class-D amplifier provides in-place amplification throughout the exhibit space
- DMX show start tracking (start shows at 30%, 50% DMX value etc.)
- DMX & Art-Net output mapping for digital, analog, PWM and servo outputs
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
- AES 67 network audio
- Built in CANOpen motor control support
The ProCommander® VX is a first of its class solid-state show controller featuring 4x polyphonic audio and dual 1080p or single 4k frame synced video in a single rack space animation controller. The real-time dynamic layering of audio tracks allows for unprecedented programming opportunities.
Ideal For:
- Synchronized lighting
- Animatronics
- Interactive exhibits
- Timeline driven shows
- Standalone playback
- Mixed media exhibits
- Synchronized multi-channel audio playback, up to 4-channels with polyphony
Outstanding Features:
- Polyphonic audio layering
- UDP audio mix, level, tone control
- SMPTE/FSK timecode in & out
- Dual 1080p or single 4k interactive, frame synced video playback
- AES67 output
- PTP, Art-Net, MTC network timecode sync
Technical Highlights:
- 16 configurable outputs (NPN/PNP)
- 16 configurable inputs
- 2 RS-232 serial ports (1 RS-485 w/full duplex)
- 1 universe of DMX input/output locally
- 16 universes of sACN/ArtNet output (DMX) via network
- On-board Ethernet/network Ready
- High power class-D 4-channel integrated amplifier
- Integrated DMX merger with LTP, HTP modes
- DMX show start tracking (start shows at 30%, 50% DMX value etc.)
- Integrated MicroSD memory card storage for audio/timeline data
- Onboard storage for video content (36 GB standard)
- Sophisticated scripting language in addition to easy to use timeline software provides powerful control options
ProCommander® X-Series
From palm sized through attraction wide
4 digital outputs
4 analog 0-10vdc outputs
8 digital inputs (4 analog)
16 Art-Net/sACN Universes
Stereo class-D Amplifier
Integrated 2.4/5 GHz Wi-Fi
Advanced networking
CANOpen Master
SMPTE/Art-Net/MTC Timecode
PTP sync
80x80x20mm - less than 2lbs
Micro-sized, full featured, advanced show playback.
8x Stereo polyphony with advanced motion and AES-67 support.
16 digital outputs
16 digital inputs (8 analog)
3 Serial Ports
16 Art-Net/sACN Universes
4 closed loop feedback inputs
4 Analog 0-10vdc
75w class-D amplifier (x8)
Balanced audio output
SMPTE/FSK/PTP/Art-Net/MTC
AES-67 support
CANOpen Master
Industrial form factor and maximum performance
16 digital outputs
16 digital inputs (8x analog)
3 Serial Ports (1x RS-485)
16 Art-Net/sACN Universes (32x optional)
4 PWM Servo
4 Analog 0-10vdc
4 DMX Outputs (Up to 32x eDMX)
Class-D amplifier (x2)
SMPTE/FSK/PTP/Art-Net/MTC
AES-67 support (x8)
CANOpen Master
4k video, 4x audio with polyphony and AES-67 support.
4k or dual 1080p video output
16 digital outputs
16 digital inputs (8 analog)
3 Serial Ports
16 Art-Net/sACN Universes
4 closed loop feedback inputs
4 Analog 0-10vdc
Balanced audio output
SMPTE/FSK/PTP/Art-Net/MTC
AES-67 support
CANOpen Master
Common Features:
- Up to 16 digital outputs
- Up to 8 polyphonic audio channels
- SMPTE/FSK In/Out
- Full color touchscreen (HX/VX only)
- Up to 16 inputs, multiple configurations
- Up to 3 serial ports, full duplex RS-485
- 512 channels of local DMX in/out
- 16x universes of ArtNet/sACN
- 4 Analog 0-10vdc outputs
- Dual Ethernet
- High power MOSFET Transistors
- Mounts in rack or DIN configuration
- Class-D amplifiers (up to 75W)
- Dual Mic input and line input (HX/VX Only)
- 2 effects channels (non-polyphony)
- Integrated DMX/Art-Net/sACN merger
- Integrated SD/SLC storage
- CANopen Master
- Optical audio output
- Balanced audio output (HX/VX only)
Flexible Integration
Enterprise Class Connectivity For Entertainment
WiFi Show Playback
2.4ghz and 5ghz wireless radios are standard on the AX and optional on other X-Series devices. Mix and match Pro I/O™ devices with X-series controllers to expand your show using the best feature combinations from all of our controllers.
Advanced Flexibility
X-Series devices can serve as master show playback or distributed I/O modules. With 32 ‘parent,’ addresses, any X-series device can switch between local show playback and ‘listening,’ to other ProCommander® or ProCommander® X-Series devices.
Legacy Compatibility
ProCommander® X-Series devices allow for maximum compatibility for nearly every device we’ve manufactured. Use WEM-Net, Ethernet, or WiFi to build your show network. Dual Ethernet on X-series devices allow bridging between system types and generations.
CANOpen Master & RS-485
HD-IDT, Dynamixel & other common motor drives
Direct Digital Motor Connection
All Weigl X-series ProCommander® controllers include full support for direct control of over 25 motor types. Connect a variety of CANOpen, RS-485 or other motor drive types directly to an X-series controller and utilize software specific controls to your motors. Add Pro I/O™ or WEMLink modules to add additional physical I/O or EtherCAT® & PLC integrations. Homing, position, velocity and other operational commands can be handled real-time, in our traditional timeline fashion with Showforge® or Conductor software and later downloaded for stand-alone playback.
Animate high precision industrial motors with the same tools as traditional analog or digital programming methods. Compare motor positions in real-time with our unique interactive plot mode (Showforge® only) and build advanced shows with simplicity.
Currently supported RS-485 devices:
- Nanotech
- Dynamixel MX106
- Dynamixel MX64
- Dynamixel Pro54
- Dynamixel Pro42
- Dynamixel MX-28
- Dynamixel Generic 10-Bit
- Dynamixel Generic 12-Bit
- Dynamixel XM430
- Applied Motion (485/CANOpen)
- IAI
- HiTEC (extended PWM Servo control)
If your desired motor type is not available via Weigl Configurator, contact us, or request a driver be added to the Weigl Digital Motor Library. Information contained herein is subject to change at any time without notice. Contact Weigl Control for additional information regarding digital motor driver library support).
Currently supported CAN/Ethernet devices:
- Nanotech Integrated Drives (PD4)
- Applied Motion (485/CANOpen)
- Kollmorgen (D700 series – AKD via absolute encoders only)
- Cool Muscle
- Harmonic Drive (Integrated Drive/IDT) via CANOpen)
- Harmonic Drive (DDP/DEP external drive via CANOpen)
- IAI
- Maxon
- Copley
- Elmo
- Exlar (Tritex II)
- Festo
- EtherCAT® via WEMLink
Not all devices support full functionality in all modes. Some limitations apply. Showforge® or Conductor required for full resolution. Designed to be used with X-Series controllers or certain motors available via Pro I/O™ CAN. Interactive plot mode available in Showforge® only.
Visual Timeline Show Creation
Tools for MacOS & PC
Timeline
Weigl hardware can be programmed visually through one of our timeline software programs. Each offer the visualization of data, including synchronous lighting, animation, show action and control data – perfectly in-sync with audio and video playback. Regardless of the nature of physical control (digital, analog, DMX, CANOpen, sACN etc.) the timeline recording interface remains consistent. Showforge® provides advanced media and motion tools built specifically for Weigl hardware.
For more information, please select below.
Build your shows using heads up real-time puppeteering or lighting console recording. Edit with non-linear tools and envelopes, or finesse with our unique interactive plot mode. Our fastest workflow yet, built from the ground up by Weigl for deep integrated support. For MacOS.
Conductor is a timeline-based show control programming and production application. It’s the perfect design for creative professionals who want to spend more time creating and less time programming. For PC.
Where to Buy:
Purchase all ProCommander® X-Series models from select resellers or Weiglshop.com (login required, shipping within the Americas only):
